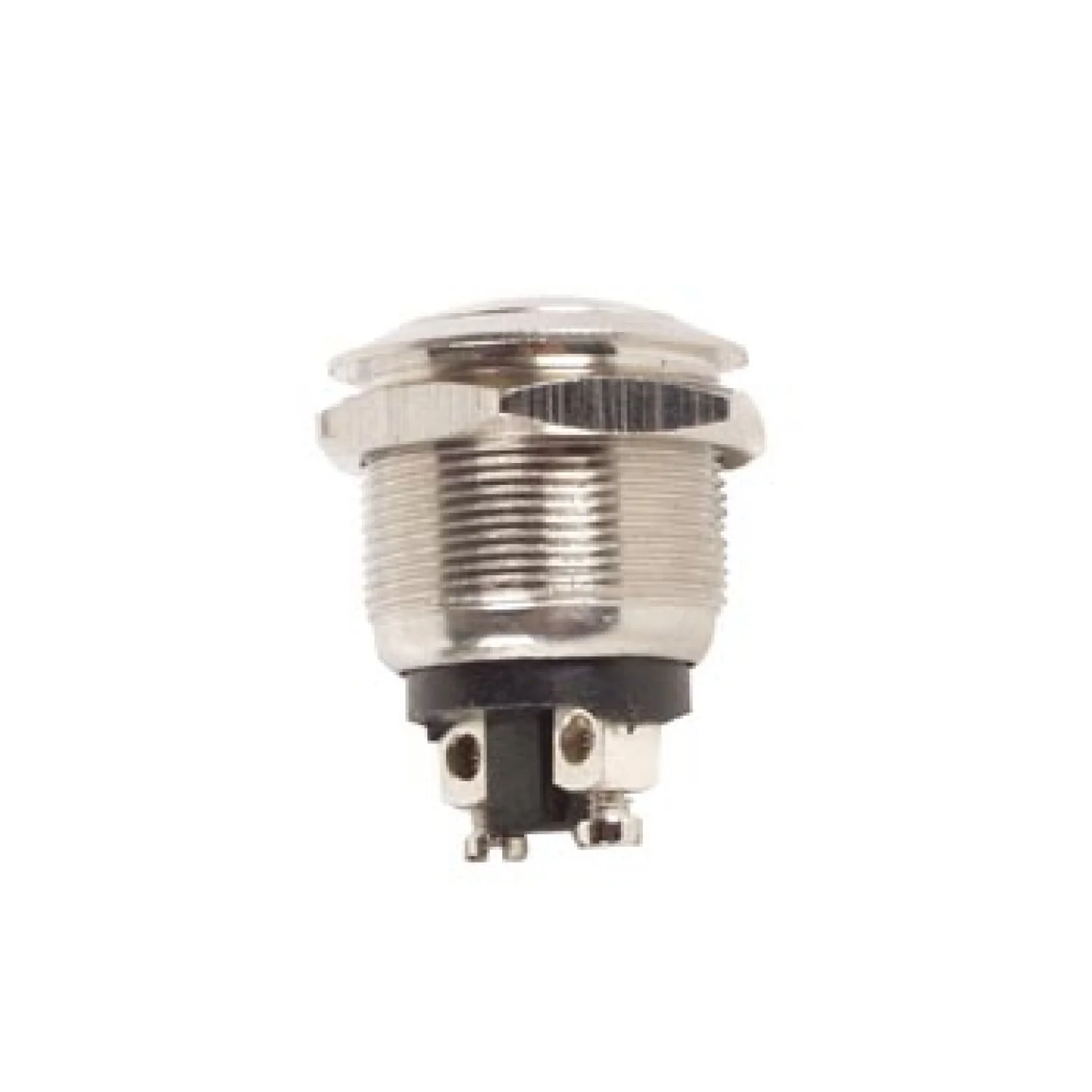

Velleman R1500A Round Metal Push Button Spst Off-(on)
General Information
Manufacturer
Velleman
Part Number
R1500A
Product Type
Metal Push Button
California Residents
Proposition 65 Warning
Specifications
Material
Silver alloy
Weight
0.02 kg
0.05 lb
Miscellaneous
Features
Type : OFF-(ON) SPST
current - voltage: -

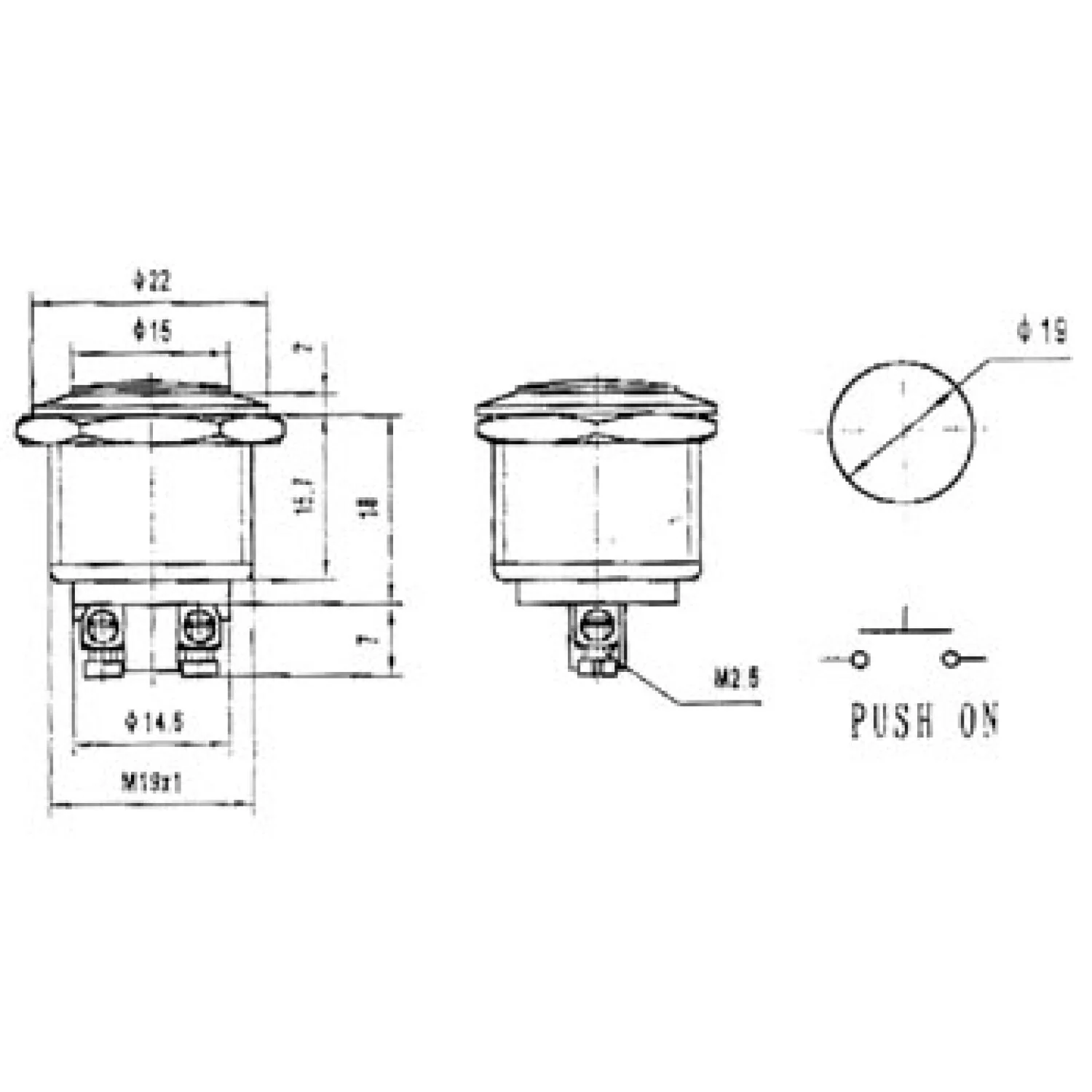

Mounting hole : Ø 19 mm
Operating temperature : -25 °C ~ +55 °C
Relative humidity : 45~85% RH
Insulation resistance: > 100 MΩ
Contact resistance: < 50 MΩ
Contact material: silver alloy
mechanical life: 1,000,000 cycles
Electrical life: 50,000 cycles
dielectric strength:
between terminals of the same pole : 1000 VAC
between terminals of different poles : 2000 VAC
Housing material : nickel-plated brass
pressure : 5.5 N
IP protection rating : IP40/IP65
max. voltage: 24 VDC / 1 A 230 VAC / 0.5 A
current - voltage: -
Mounting hole : Ø 19 mm
Operating temperature : -25 °C ~ +55 °C
Relative humidity : 45~85% RH
Insulation resistance: > 100 MΩ
Contact resistance: < 50 MΩ
Contact material: silver alloy
mechanical life: 1,000,000 cycles
Electrical life: 50,000 cycles
dielectric strength:
between terminals of the same pole : 1000 VAC
between terminals of different poles : 2000 VAC
Housing material : nickel-plated brass
pressure : 5.5 N
IP protection rating : IP40/IP65
max. voltage: 24 VDC / 1 A 230 VAC / 0.5 A
General Information
Manufacturer
Velleman
Part Number
R1500A
Product Type
Metal Push Button
California Residents
Proposition 65 Warning
Specifications
Material
Silver alloy
Weight
0.02 kg
0.05 lb
Miscellaneous
Features
Type : OFF-(ON) SPST
current - voltage: -
Mounting hole : Ø 19 mm
Operating temperature : -25 °C ~ +55 °C
Relative humidity : 45~85% RH
Insulation resistance: > 100 MΩ
Contact resistance: < 50 MΩ
Contact material: silver alloy
mechanical life: 1,000,000 cycles
Electrical life: 50,000 cycles
dielectric strength:
between terminals of the same pole : 1000 VAC
between terminals of different poles : 2000 VAC
Housing material : nickel-plated brass
pressure : 5.5 N
IP protection rating : IP40/IP65
max. voltage: 24 VDC / 1 A 230 VAC / 0.5 A
current - voltage: -
Mounting hole : Ø 19 mm
Operating temperature : -25 °C ~ +55 °C
Relative humidity : 45~85% RH
Insulation resistance: > 100 MΩ
Contact resistance: < 50 MΩ
Contact material: silver alloy
mechanical life: 1,000,000 cycles
Electrical life: 50,000 cycles
dielectric strength:
between terminals of the same pole : 1000 VAC
between terminals of different poles : 2000 VAC
Housing material : nickel-plated brass
pressure : 5.5 N
IP protection rating : IP40/IP65
max. voltage: 24 VDC / 1 A 230 VAC / 0.5 A
$3.85
Original: $10.99
-65%Velleman R1500A Round Metal Push Button Spst Off-(on)—
$10.99
$3.85Description
