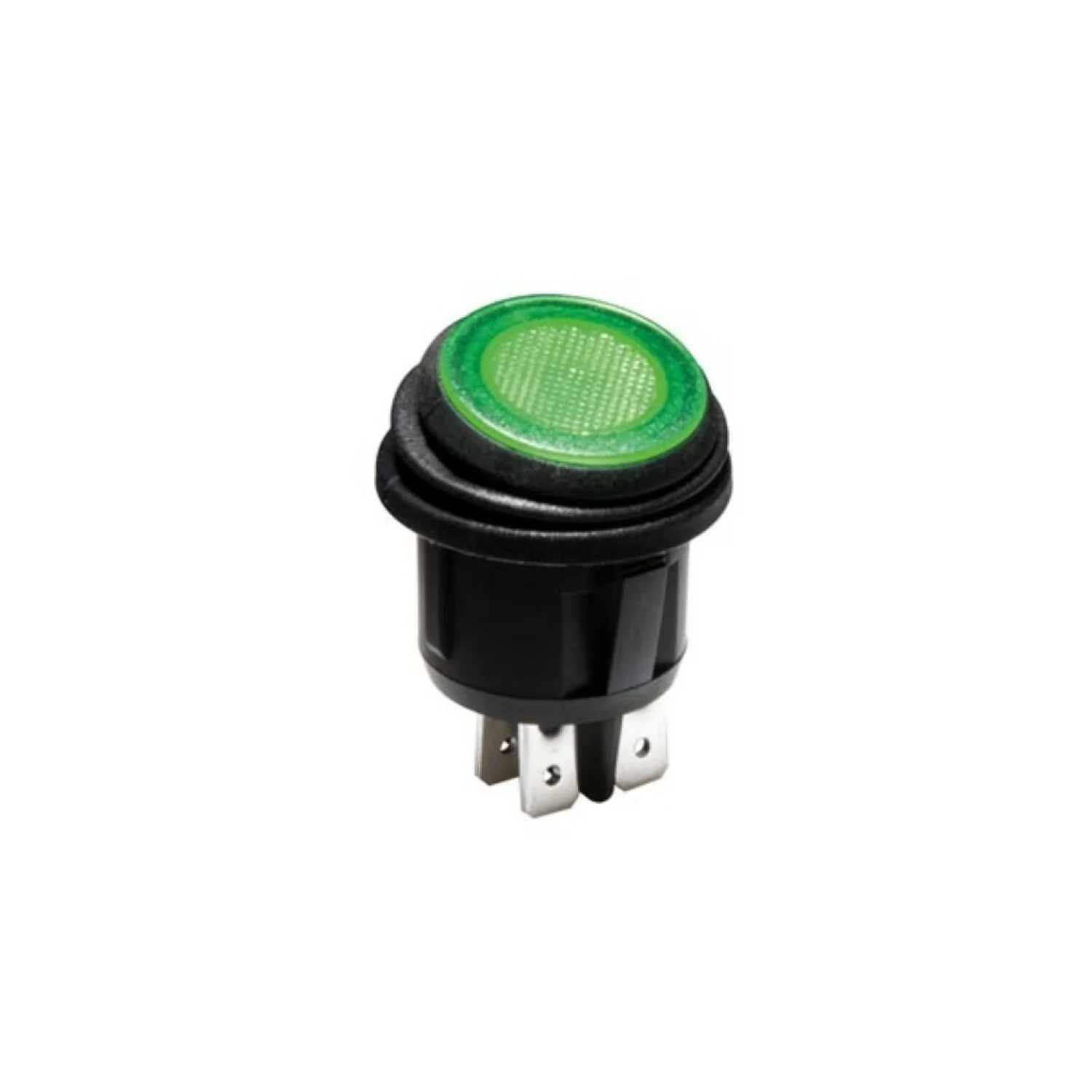

Velleman R13244BG/LED Green Led Illuminated Rocker Switch 2p Dpst /on-off 12v
General Information
Manufacturer
Velleman
Part Number
R13244BG/LED
Product Type
Green Led
California Residents
Proposition 65 Warning
Specifications
Weight
0.01 kg
0.02 lb
Miscellaneous
Features
illumination : Green LED (12V)
Contact rating : 16A/ 12Vdc
Electrical life : 20000 cycles
Mechanical life : 50000 cycles
Contact resistance : 50 mOhm
insulation resistance: min. 100 MOhm at 500 VDC
dielectric strength: 1500 VAC / 1 minute
materials: housing: 66 nylon (UL94V-2)
actuator: 66 nylon (UL94V-2)
movable contacts: copper, silver-plated
stationary contacts: copper, silver-plated
terminals : copper, silver-plated
contact: spring-loaded
Contact rating : 16A/ 12Vdc
Electrical life : 20000 cycles
Mechanical life : 50000 cycles
Contact resistance : 50 mOhm
insulation resistance: min. 100 MOhm at 500 VDC
dielectric strength: 1500 VAC / 1 minute
materials: housing: 66 nylon (UL94V-2)
actuator: 66 nylon (UL94V-2)
movable contacts: copper, silver-plated
stationary contacts: copper, silver-plated
terminals : copper, silver-plated
contact: spring-loaded
