Greenlee

6900

Puller Assembly

Electrical Cable pull

Retail

United States

783310003571

Proposition 65 Warning

NCNR - Non-Cancellable / Non-Returnable

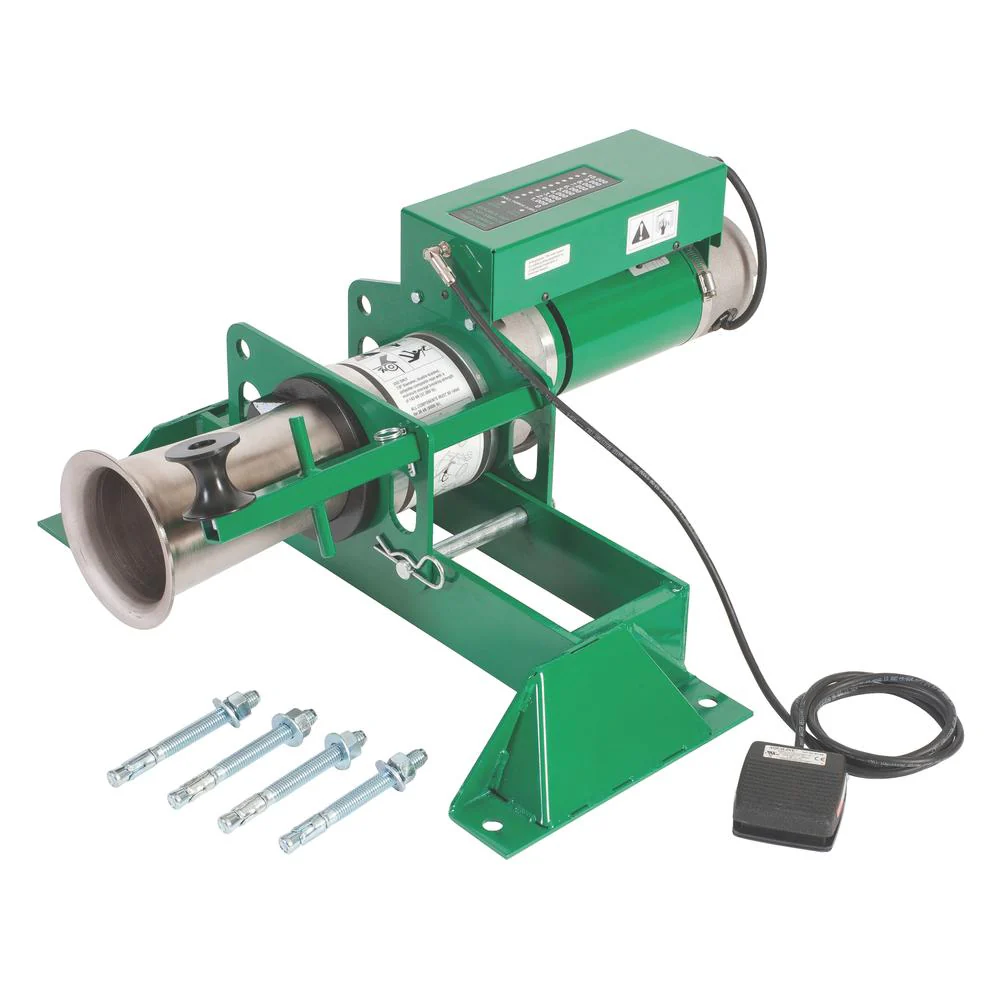

2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop: The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch
Use for cable pulls requiring high as well as low pulling loads
The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT
The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range
Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB
Easy control features for increased productivity: On-board force gauge provides visual communication of pulling force and speed changes
Quick speed change from high speed to low-speed by simply double tapping foot pedal
Removable foot pedal for convenience
Sets up in less than 2 minutes and can be used in every pulling situation
This combination of speed and versatility can increase your productivity, equaling more pulls in a day and delivering greater benefit to your bottom line

Load: 0 - 6500.000 LB (0 - 28.900 KN) Continuous Operation, 6500.000 - 8000.000 LB (28.900 - 35.600 KN) 15 Minutes ON/15 Minutes OFF, 8000.000 - 10000.000 LB (35.600 - 44.500 KN) Momentary
Cable Type: Electrical Cable
Mounting: Floor Mount
Prime Mover Specification: Required Rope: 7/8" diameter, double-braided, polyester composite Average Breaking Strength: 143 kN (32,000 lb) minimum
Capacity: The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
Amperage Rating: 20 Amp

115 Volts
