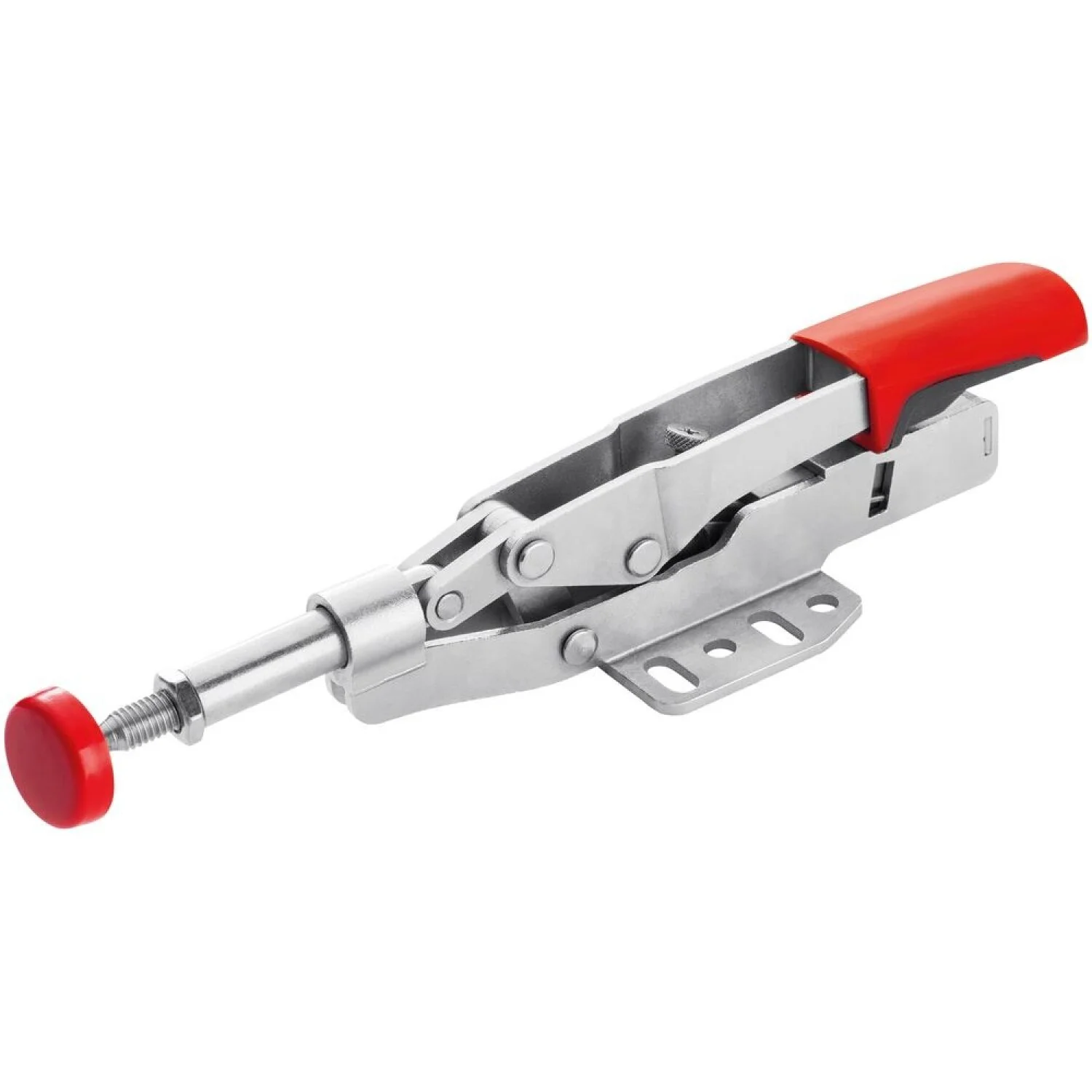

Bessey STC-IHH15 Auto adjust toggle clamp, horizontal push pull, flanged base

Product image 1
1 / 15
+10

Bessey STC-IHH15 Auto adjust toggle clamp, horizontal push pull, flanged base

General Information
Brand
BESSEY Tools
UPC
91162140062
California Residents
Proposition 65 Warning
Part Number
STC-IHH15
Product Type
Clamp
Physical Characteristics
Weight
0.19 kg
0.41 lb
Finish
Red
Material
Sheet metal parts made of tempered steel, nickel-plated
Spindle made of steel, galvanised
Plastic protective cap helps prevent surface damage during use
Details
Features
Auto-Adjusts to variations in work piece width up to 0-16 mm (approx 5/8 IN)
Holding capacity up to 700 lbs (nominal)
Integrated pressure screw allows clamping force adjustment from 25-550 lbs
Large ergonomic handle
High quality construction
Base construction is optimized for 1/4 IN (M6) fasteners
Plunger has an M8 thread
Grip Type
Ergonomic
General Information
Brand
BESSEY Tools
UPC
91162140062
California Residents
Proposition 65 Warning
Part Number
STC-IHH15
Product Type
Clamp
Physical Characteristics
Weight
0.19 kg
0.41 lb
Finish
Red
Material
Sheet metal parts made of tempered steel, nickel-plated
Spindle made of steel, galvanised
Plastic protective cap helps prevent surface damage during use
Details
Features
Auto-Adjusts to variations in work piece width up to 0-16 mm (approx 5/8 IN)
Holding capacity up to 700 lbs (nominal)
Integrated pressure screw allows clamping force adjustment from 25-550 lbs
Large ergonomic handle
High quality construction
Base construction is optimized for 1/4 IN (M6) fasteners
Plunger has an M8 thread
Grip Type
Ergonomic
$14.05

Original: $40.15

-65%
Bessey STC-IHH15 Auto adjust toggle clamp, horizontal push pull, flanged base—

$40.15

$14.05

Description

General Information
Brand
BESSEY Tools
UPC
91162140062
California Residents
Proposition 65 Warning
Part Number
STC-IHH15
Product Type
Clamp
Physical Characteristics
Weight
0.19 kg
0.41 lb
Finish
Red
Material
Sheet metal parts made of tempered steel, nickel-plated
Spindle made of steel, galvanised
Plastic protective cap helps prevent surface damage during use
Details
Features
Auto-Adjusts to variations in work piece width up to 0-16 mm (approx 5/8 IN)
Holding capacity up to 700 lbs (nominal)
Integrated pressure screw allows clamping force adjustment from 25-550 lbs
Large ergonomic handle
High quality construction
Base construction is optimized for 1/4 IN (M6) fasteners
Plunger has an M8 thread
Grip Type
Ergonomic
