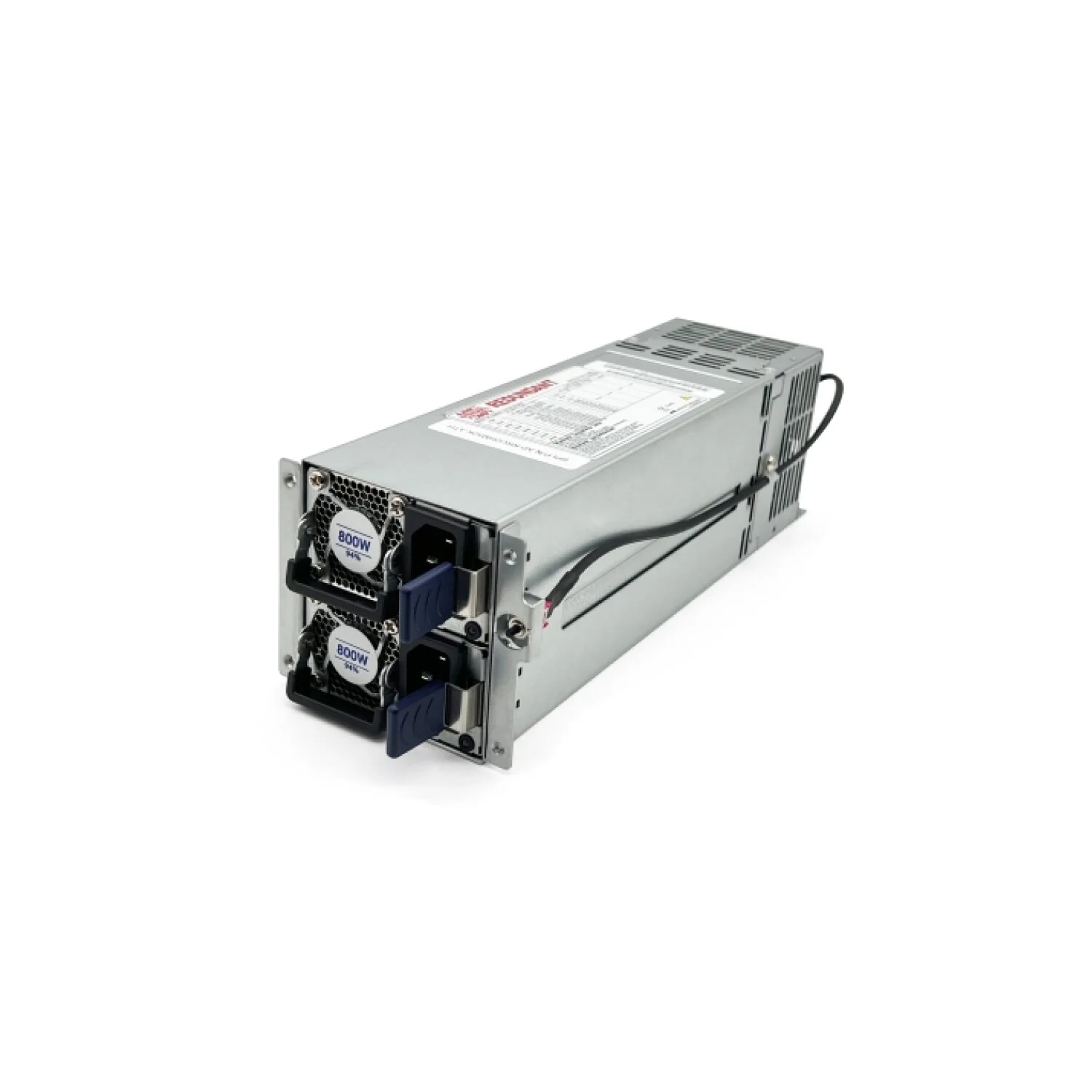

Athena Power AP-RRU2M8062 2U Mini Redundant 62368 Power Supply
General Information
Manufacturer
Athena Power
Part Number
AP-RRU2M8062
Product Type
Power Supply
California Residents
Proposition 65 Warning
Specifications
Color
Silver
Material
Plastic & Steel
Length
10.4" (264 mm)
Width
3" (76 mm)
Height
3.3" (83.8 mm)
Weight
4.54 kg
10.00 lb
Miscellaneous
Features
Output Power: 800 Watts
Input Voltage: 90 ~ 264 Volts AC
Frequency: 47/63 Hz
Temperature Range:
Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C
MTBF: 250,000 Hours on Maximum Load at +25°C
Rise Time: Less than 70 ms
Hold-Up Time: 11 ms Minimum at Nominal Input Voltage
Output:
Voltage: +3.3V / +5V / +12V / -12V / +5Vsb
Current: 12A / 24A / 65A / 0.3A / 5A
Connectors:
ATX Connector 24(20+4) pin
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 8
SATA 15 Pin x 6
Floppy 4 Pin x 2
Input Voltage: 90 ~ 264 Volts AC
Frequency: 47/63 Hz
Temperature Range:
Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C
MTBF: 250,000 Hours on Maximum Load at +25°C
Rise Time: Less than 70 ms
Hold-Up Time: 11 ms Minimum at Nominal Input Voltage
Output:
Voltage: +3.3V / +5V / +12V / -12V / +5Vsb
Current: 12A / 24A / 65A / 0.3A / 5A
Connectors:
ATX Connector 24(20+4) pin
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 8
SATA 15 Pin x 6
Floppy 4 Pin x 2
General Information
Manufacturer
Athena Power
Part Number
AP-RRU2M8062
Product Type
Power Supply
California Residents
Proposition 65 Warning
Specifications
Color
Silver
Material
Plastic & Steel
Length
10.4" (264 mm)
Width
3" (76 mm)
Height
3.3" (83.8 mm)
Weight
4.54 kg
10.00 lb
Miscellaneous
Features
Output Power: 800 Watts
Input Voltage: 90 ~ 264 Volts AC
Frequency: 47/63 Hz
Temperature Range:
Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C
MTBF: 250,000 Hours on Maximum Load at +25°C
Rise Time: Less than 70 ms
Hold-Up Time: 11 ms Minimum at Nominal Input Voltage
Output:
Voltage: +3.3V / +5V / +12V / -12V / +5Vsb
Current: 12A / 24A / 65A / 0.3A / 5A
Connectors:
ATX Connector 24(20+4) pin
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 8
SATA 15 Pin x 6
Floppy 4 Pin x 2
Input Voltage: 90 ~ 264 Volts AC
Frequency: 47/63 Hz
Temperature Range:
Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C
MTBF: 250,000 Hours on Maximum Load at +25°C
Rise Time: Less than 70 ms
Hold-Up Time: 11 ms Minimum at Nominal Input Voltage
Output:
Voltage: +3.3V / +5V / +12V / -12V / +5Vsb
Current: 12A / 24A / 65A / 0.3A / 5A
Connectors:
ATX Connector 24(20+4) pin
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 8
SATA 15 Pin x 6
Floppy 4 Pin x 2
